heavy duty rack & shelving

Heavy duty rack & shelving systems is used in any type of setting (storage spaces, warehouse, etc.) and are offered in several colours.

The range of uses of this rack is vast, and the principle is very simple: By using standard components combined with our know-how in the field of storage and a large offering of accessories, we provide a solution that is tailor-made to your needs.

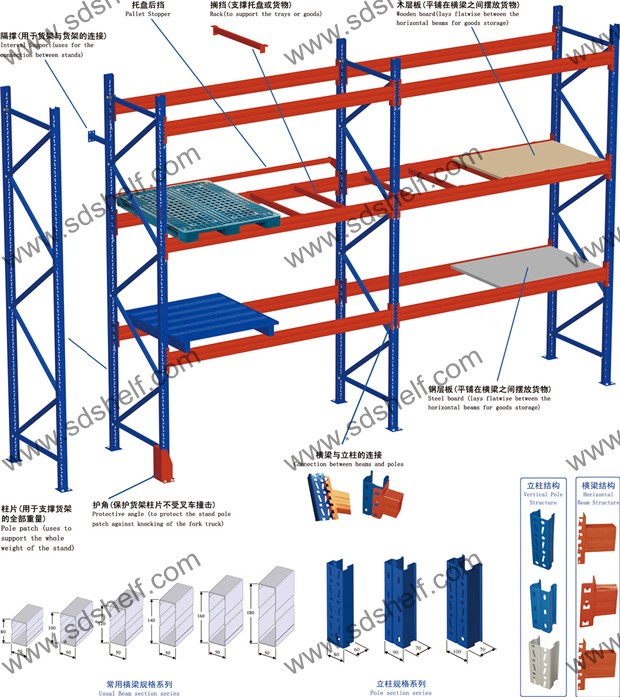

The basic structure consists of uprights and beams. The uprights comprise 2 vertical pieces connected by 2 cross beams and bolted C-shaped diagonals.

It is built by pallet racking frames, step beams or standard boxed beams with special clips and shelves. It can be incorporated into Pallet Racking to maximize storage capacity, picking face and minimize storage space.

Characteristics of Heavy Duty Rack
1. Heavy duty rack is a kind of assembly type industrial shelving that can be used to store various kinds of bulk cargo.
2. Separate shelf frame and shelf boards.
3. The shelf frame is installed with shims and floor fixing bolts.
4. Our heavy duty Rcck is very safe and secure.


5. Dimensions:
Depth: 800mm, 1000mm, 1100mm, 1200mm
Length: from 1500 mm to 5000 mm
Height: from 1500 mm to 10000 mm

6. Load:
Load per Level: up to 5000 kg
Load per Bay: up to 30000 kg

Please contact us if you require of any of our products.
